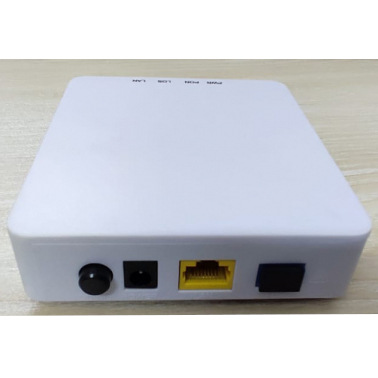

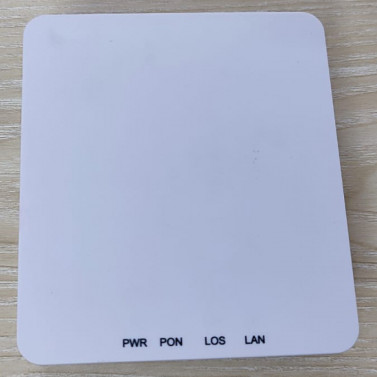

DBC 1 GE XPON ONU MODEL: XP8100

800৳

  • Interface
    • Downstream Data Rate: 2.488Gbps
    • Upstream Data Rate: 1.244Gbps
    • SC/UPC single-mode fiber
    • PON Port
      • 1 x XPON port, FSAN G.984.2 standard/IEEE802.3ah
    • 28dB Link loss and 20KM distance with 1:128
    • Receiving sensitivity: ≤-30dBm
    • Transmitting optical power: 0~+4dBm
Category:
Description

Full Specification

Item Media Converter
Model ✅ XPON XP8100
Converter Type ONU
  • Interface
    • Downstream Data Rate: 2.488Gbps
    • Upstream Data Rate: 1.244Gbps
    • SC/UPC single-mode fiber
    • PON Port
      • 1 x XPON port, FSAN G.984.2 standard/IEEE802.3ah
    • 28dB Link loss and 20KM distance with 1:128
    • Receiving sensitivity: ≤-30dBm
    • Transmitting optical power: 0~+4dBm
  • Ethernet Port (LAN)
    • 1 x GE Auto-negotiation RJ45 ports
    • Full Duplex / Half-Duplex
    • RJ45, Auto-MDI/MDI-X
    • Transmission Distance: 100 Meters
  • Power
    • Power Supply: 12V, 0.5A DC input
    • Power Consumption: up to 3W
  • Environment
    • Operating Temperature: 0～50℃
    • Storage Temperature: -40～85℃
    • Operating Humidity: 10～90% (Non-condensing)
    • Storage Humidity: 10～90% (Non-condensing)
  • Shell: Plastic casing
  • Dimension(L x W x H): 110 x100 x 23mm
  • Weight: 300gm

Description

This XPON XP8100 1GE ONT ONU is designed to meet the requirements of broadband access networks. It features high-performance forwarding capabilities that will ensure an excellent experience with HD video services. This ONT will support a seamless terminal solution and future-oriented services for FTTH implementation. It is well-compatible with third-party OLTs including Huawei, ZTE, and Fiber Home.
